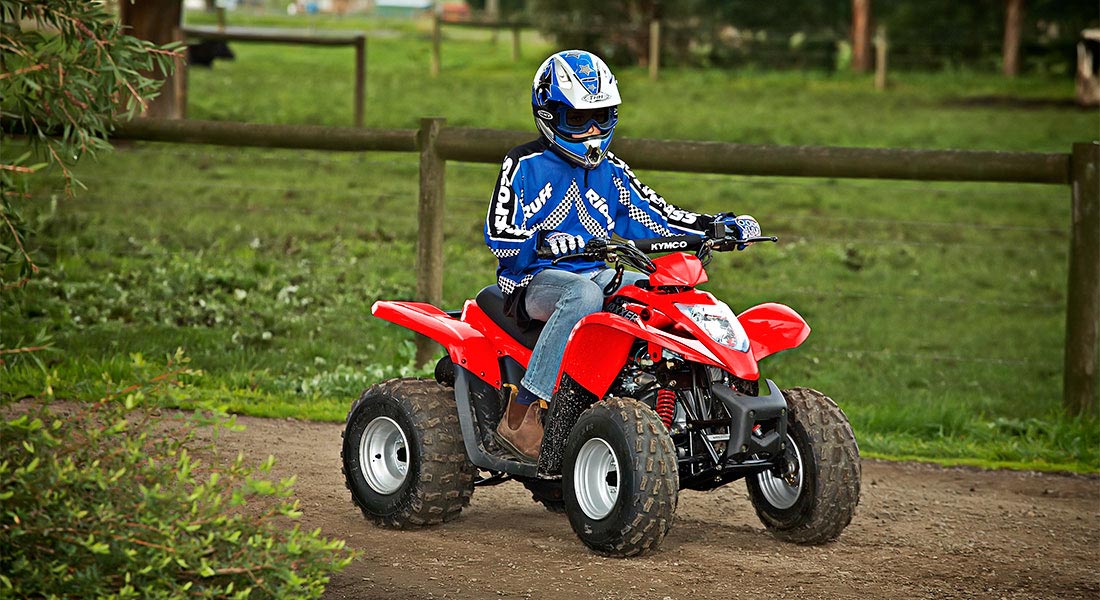

Maxxer 50
EVERYTHING YOUR FUTURE STAR NEEDS TO HAVE FUN AND STAY SAFE.
The Maxxer 50 offers a 49cc two-stroke engine and delivers smooth power while the CVT automatic transmissions make riding simple for even the newest rider. Maxxer 50 has great safety features like keyed electric start, a throttle stop and ignition cut-off lanyard to help you keep the fun in check.
SMOOTH TWO-STROKE ENGINE
49cc, SOHC, air-cooled two-stroke engine provides consistent power
TWIST-AND-GO TRANSMISSION WITH REVERSE
CVT automatic transmission allows for easy operation
FULL SIZED ATV TYPE SHIFTER
Full sized ATV type shifter for shifting between F-N-R
SOFT HANDLE BAR PADDING
Handle bar pad offers improved rider protection
SAFE KEYED IGNITION
Keyed starting prevents operation without adult supervision
ADJUSTABLE THROTTLE STOP
Adjustable throttle stop restricts top speed until your young rider is confident
IGNITION CUT-OFF LANYARD
Ignition cut-off lanyard allows adults to shut off the engine by pulling the lanyard
SIMPLE STARTING
Electric start makes starting simple every time
EASY KICK-START BACKUP
Kick-start backup provides an alternative starting method
FULL SIZED SPORTS ATV STYLING
Aggressive full sized sports ATV styling
PROTECTIVE WIDE FLOOR BOARDS
Full floor boards protect young rider’s feet from the wheels and debris
DESIGNED FOR YOUR FUTURE CHAMPION
Rider controls and seating position are specifically designed for kids to inspire rider confidence
BRIGHT HALOGEN LIGHTING
Front halogen head lamp and rear halogen brake lamp provide enhanced visibility
ADVANCED BRAKING PERFORMANCE
Front drum brakes and rear disc brake offer increased braking performance
RESPONSIVE FRONT SUSPENSION
Single a-arm front suspension with twin shock absorbers for stable handling
STABLE UNIT-SWING REAR SUSPENSION
Unit-swing rear suspension with single shock provides a consistent ride
SIMPLE CHAIN DRIVE
Chain drive for reliable performance and simple maintenance
FACTORY WARRANTY
Two year warranty ensures the fun will last for years to come
Engine
Engine | Air-cooled, two-stroke |
---|---|
Displacement | 49.4cc |
Power | 3.9 HP @ 6000 RPM |
Bore x Stroke | 39 x 41.4 mm |
Compression ratio | 7.2:1 |
Fuel system | Carburettor |
Ignition | CDI |
Starting system | Electric with kick backup |
Transmission | CVT automatic |
Final drive | 2WD, Chain |
Suspension
Front suspension | Single A-arm with twin shock absorbers |
---|---|
Rear suspension | Unit-swing with single shock absorber |
Front tire size | 16 x 8 – 7 inch |
Rear tire size | 16 x 8 – 7 inch |
Front brakes | Dual mechanical drum |
Rear brakes | Hydraulic disc |
Size / Weight
Length x Width x Height | 1385 mm x 820 mm x 900 mm |
---|---|
Wheelbase | 900 mm |
Seat height | 630 mm |
Ground clearance | 75 mm |
Fuel capacity | 6 l |
Dry weight | 100 kg |
Other | |
Colour choices | Red or Blue |
Warranty | 2-year factory program |
