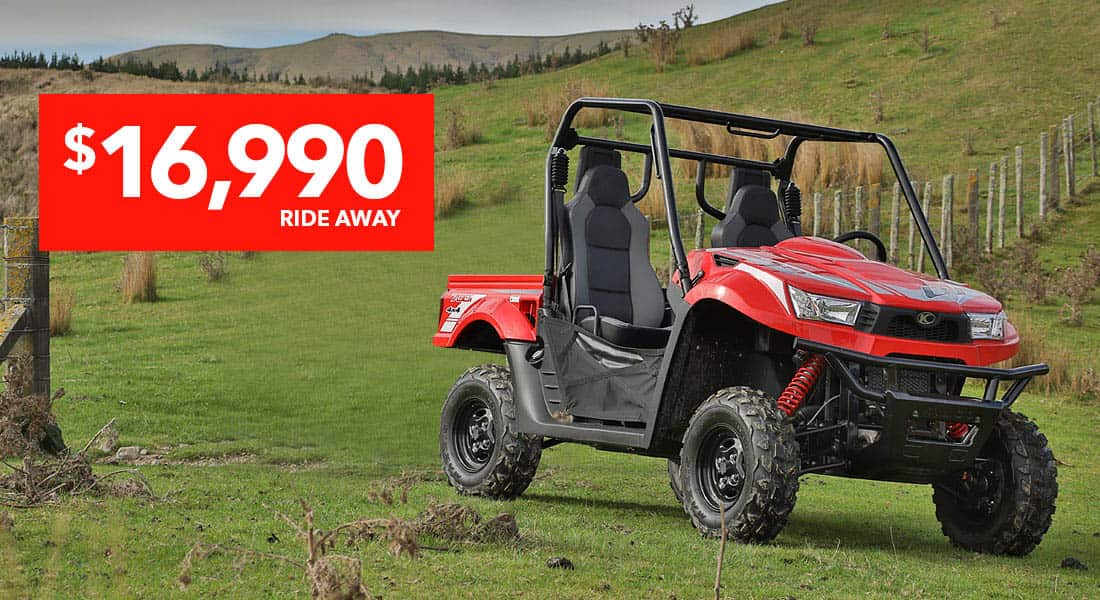

UXV 700i EPS
UXV 700I EPS DELIVERS, DAY IN AND DAY OUT.
When it comes to hard work, UXV 700i EPS gets the job done. Powered by KYMCO's smooth 45 horsepower engine, which features a new and improved automatic CVT-Drive system, including all-important active engine braking. Off road the UXV really feels at home, with plenty of ground clearance, a simple 'push button' two-wheel-drive / four-wheel-drive activation and independent dual A-Arm suspension front and rear. Bred to work, the UXV has a generously sized tipping cargo bed and a hefty 550kg tow capacity to get more done in your workday. KYMCO is made tough in Taiwan and supported by a 3 year warranty, which guarantee's A-Grade durability. Visit your local dealer and see why your next side by side on the farm will be a KYMCO.
POWERFUL 45HP FOUR-STROKE ENGINE
659cc, SOHC, EFI, liquid-cooled four-stroke engine provides reliable power
SMOOTH ELECTRONIC POWER STEERING
Electronic power steering reduces rider fatigue and provides increased manoeuvrability
ADVANCED ELECTRONIC FUEL INJECTION
Electronic fuel injection delivers easier starting, smoother power and increased efficiency
HIGH / LOW RANGE SELECTOR
CVT automatic transmission with high / low range selector
ACTIVE ENGINE BRAKING
Active engine braking retards excess speed
SELECTABLE DRIVE MODES WITH DIFF LOCK
Diff lock with push button selectable 2WD / 4WD will master any terrain
SUPERIOR BRAKING PERFORMANCE
Front and rear hydraulic disc brakes with braided lines provide superior braking
PARKING BRAKE
Shaft mounted parking brake for safe parking while the operator is off the machine
BROAD HALOGEN LIGHTING
Twin front halogen head lamps with high / low beam provide a broad spread of light
REAR HALOGEN BRAKE LAMPS
Rear halogen brake lamps for enhanced visibility
BRIGHT LED FRONT POSITION LAMPS
LED front position lamps increase vehicle visibility
DIGITAL INSTRUMENTATION
Backlit digital instrument display
FRONT AND REAR INDEPENDENT SUSPENSION
Dual a-arm front and rear independent suspension provides 12 inches of ground clearance
ADJUSTABLE SHOCK ABSORBERS
Kaifa gas-reservoir shock absorbers offer pre-load, compression and rebound adjustment
STEEL WHEELS
Durable 12 inch black steel wheels
CONVENIENT 12V DC OUTLET AND USB PORT
Sealed in dash 12V DC outlet and USB port to charge your devices or run a spotlight
ROLL CAGE
Redesigned roll cage with increased headroom and added protection
AUTOMOTIVE STYLE 3-POINT SHOULDER SEAT BELTS
3-point shoulder seat belts for occupant protection with safety interlock
SEAT BELT REMINDER LAMP
Instrumentation features seat belt reminder warning lamp
INTEGRATED STORAGE
Under-hood, under-seat and lockable glove box storage
TILTING CARGO BED
Gas assisted tilting cargo bed with dual control levers on driver and passenger side
UNDER SIDE SKID PLATES
Front brush guard and under side skid plates deflect debris from vital components
SIDE NETTING
Side netting protects occupants from side intrusion
FACTORY WARRANTY
Three year factory warranty program* supported by a national dealer network
Engine
| Engine | SOHC, liquid-cooled, four-stroke |
|---|---|
| Displacement | 695cc |
| Power | 45 HP @ 6500 RPM |
| Bore x Stroke | 102 x 85 mm |
| Compression ratio | 10.5:1 |
| Fuel system | Electronic Fuel Injection |
| Ignition | ECU |
| Starting system | Electric |
| Transmission | CVT automatic with dual range and reverse gear and active engine braking |
| Final drive | Push button selectable 4WD with locking front differential, Shaft |
Suspension
| Front suspension | Independent dual a-arm with adjustable Kaifa gas-reservoir shock absorbers |
|---|---|
| Rear suspension | Independent dual a-arm with Kaifa gas-reservoir shock absorbers. |
| Front tire size | 25 x 8 - 12 inch / Steel wheels |
| Rear tire size | 25 x 10 - 12 inch / Steel wheels |
| Front brakes | Dual hydraulic disc, 202 mm |
| Rear brakes | Single hydraulic disc, 200 mm |
| Capacity | |
| Cargo Bed Size | 1210 mm x 820 mm x 310 mm |
| Cargo Bed | 200 kg |
| Towing | 550 kg |
Size / Weight
| Length x Width x Height | 2870 mm x 1500 mm x 1850 mm |
|---|---|
| Wheelbase | 1910 mm |
| Ground clearance | 300 mm |
| Fuel capacity | 32 l |
| Dry weight | 543 kg |
| Other | |
| Colour choices | Red |
| Warranty | 3 year factory program* |
*KYMCO products are supported by our 3-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
