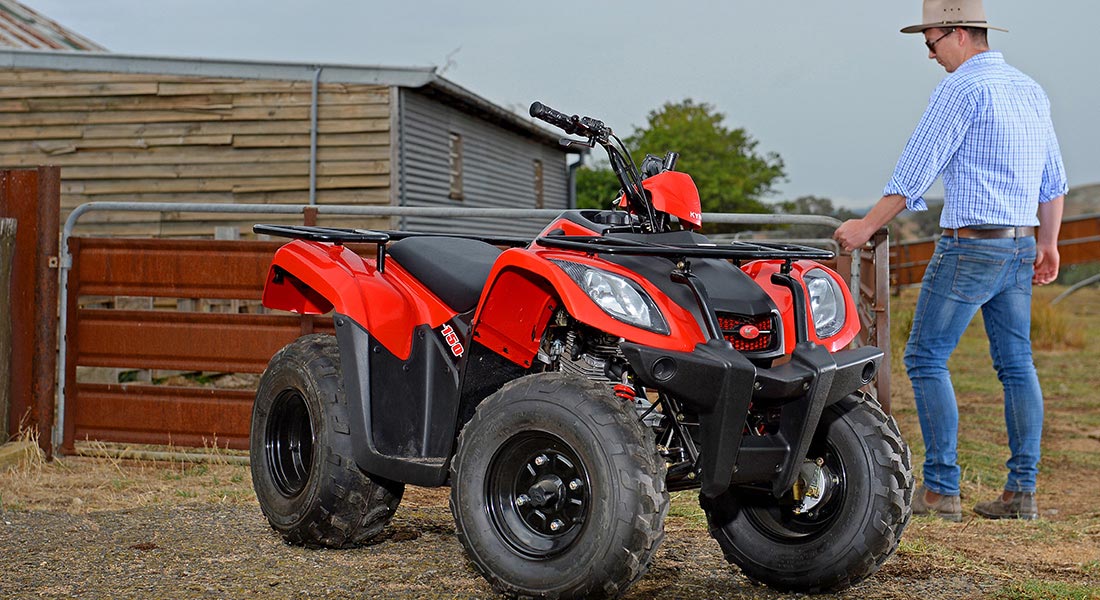

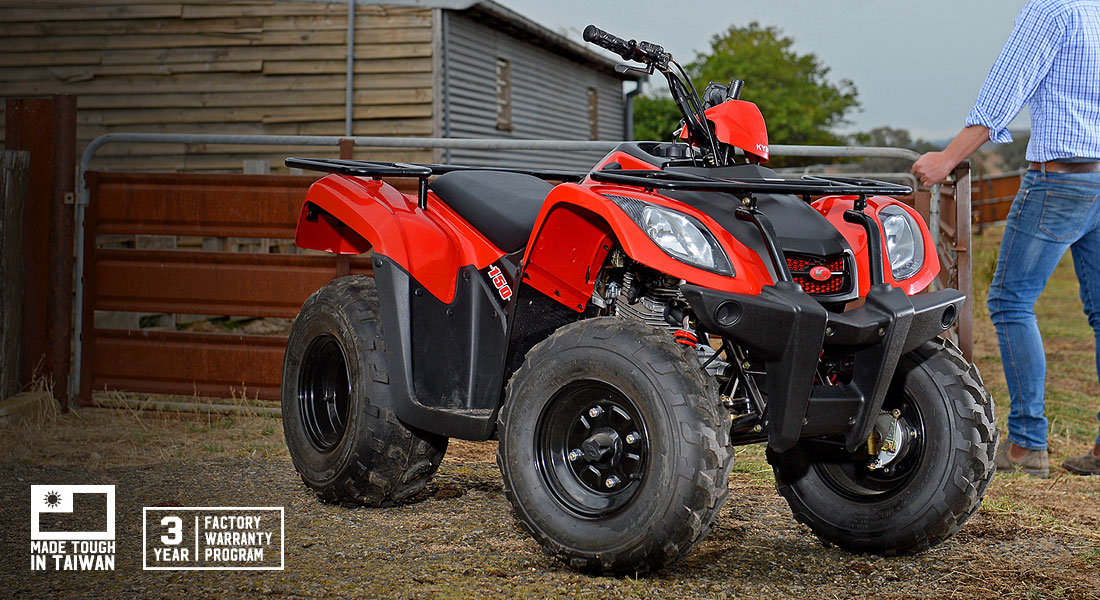

MXU 150
PERFECT TO HAUL YOU AROUND YOUR PROPERTY.
With a practical compact size and straight forward features, KYMCO MXU 150 is perfect to haul you around your property. The efficient 11HP four-stroke engine delivers reliable power, while the CVT automatic transmission with reverse, smooth suspension and light steering make this machine easy to ride. Fitted with wide carry racks there’s plenty of room for any extra equipment. If you’re searching for great value, KYMCO MXU 150 delivers the convenience of a full-sized ATV in a practical and nimble package.
Efficient four-stroke engine
149cc, SOHC, air-cooled four-stroke engine provides reliable power
Simple carburettor
Carburettor with choke is reliable and simple to maintain
Twist-and-go transmission
CVT automatic transmission with reverse gear for easy operation
Reliable electric start
Electric start makes starting simple every time
Simple kick-start backup
Kick starter provides an alternative starting method
Practical compact size
Short wheelbase and narrow track provide tighter turning circle and lighter steering
Low seat height
Low seat height makes it easy to get on and off
Enhanced braking performance
Front drum brakes and rear hydraulic disc brake offer enhanced braking performance
Broad halogen lighting
Twin front halogen head lamps with high / low beam provide a broad spread of light
Rear halogen brake lamp
Rear halogen brake lamp for enhanced visibility
Convenient front and rear carry racks
Front and rear carry racks allow you to haul additional equipment
Straight forward instrumentation
Backlit digital dash with speedometer, clock, trip meter, fuel and temperature indicators
Responsive front suspension
Single a-arm independent front suspension with twin shock absorbers for stable handling
Stable rear suspension
Unit-swing rear suspension with single shock absorber
Simple chain drive design
Chain drive for reliable performance and simple maintenance
Large fuel tank
Large eight litre fuel tank will keep you out longer
Durable steel wheels
10-inch steel wheels are durable and simple to keep clean
Under seat storage area
Large under seat storage area provides additional secure storage
Factory warranty
Three year warranty program* supported by a national dealer network
Engine
| Engine | SOHC, air-cooled, four-stroke |
|---|---|
| Displacement | 149cc |
| Power | 11 HP @ 7000 RPM |
| Bore x Stroke | 62 x 49.5 mm |
| Compression ratio | 9.7:1 |
| Fuel system | Carburettor |
| Ignition | CDI |
| Starting system | Electric with kick backup |
| Transmission | CVT automatic with reverse gear |
| Final drive | 2WD, Chain |
Suspension
| Front suspension | Single A-arm with twin shock absorbers |
|---|---|
| Rear suspension | Unit-swing with single shock absorber |
| Front tire size | 21 x 7 – 10 inch |
| Rear tire size | 22 x 10 – 10 inch |
| Front brakes | Dual mechanical drum |
| Rear brakes | Hydraulic disc |
| Capacity | |
| Carrying | 15 kg (front) / 20 kg (rear) |
| Towing | 150 kg |
Size / Weight
| Length x Width x Height | 1776 mm x 950 mm x 1040 mm |
|---|---|
| Wheelbase | 1115 mm |
| Seat height | 750 mm |
| Ground clearance | 195 mm |
| Fuel capacity | 8.1 l |
| Dry weight | 175 kg |
| Other | |
| Colour choices | Red |
| Warranty | 3 year factory program* |
*KYMCO products are supported by our 3-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.
